CAN communication, stable performance and anti-interference

Supports efficient panoramic charging that is fast In the middle Slow charging allows for free switching

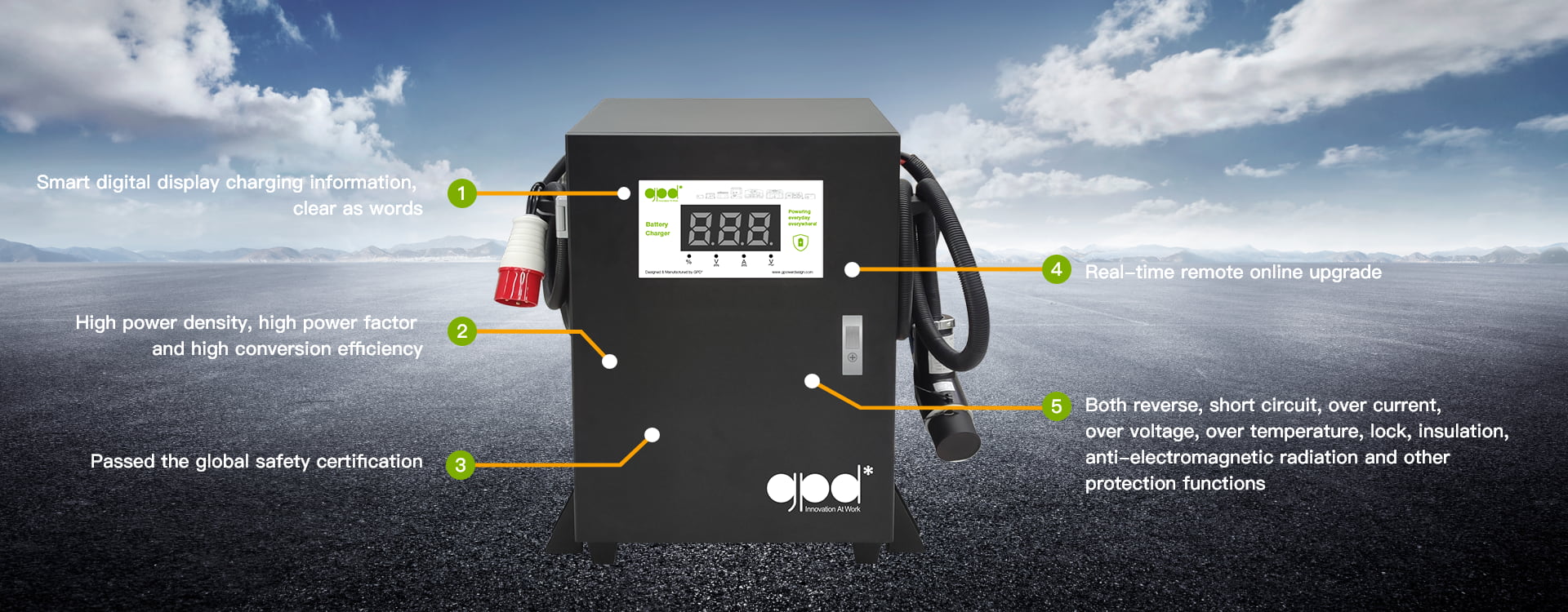

High power density, high power factor, and high conversion efficiency

Adopting microcontroller precise control, resonant soft switching, and active PFC technology

Real time remote online upgrade

Intelligent digital screen displays charging information, clear and picturesque

Convenient access to historical charging records, operation logs, and clear and picturesque charging processes

It has multiple protection functions such as reverse connection, short circuit, overcurrent, overvoltage, overtemperature, locking, insulation, etc

work environment

Working Voltage 85~420Vac
Working temperature -40℃~65℃
Efficiency 93%

High voltage surge protection

IP67 / 66 durable design

Battery equalization charging

Reserve CANbus function

Charging record tracking

High power charging

EQUIPMENT PARAMETERS

Equipment Parameters

Output Power 12000W

High Voltage Protection Voltage 340~420Vac

Working Voltage 340~420Vac

Rated Voltage 80Vdc

Rated Frequency 50~60Hz

Nominal Output Voltage 80Vdc

Max Output Voltage 114Vdc

Max Output Current 150A

Efficiency 93%MAX

Working Temperature -40℃~65℃

Weight 60.0kg

Vibration UL1236

Humidity 10~90%Rh

Dimension 600*460*712mm

IP Protection Level IP31

Battery Type AGM, Flooded, GEL, Lithium

PDF document

SAFETY CERTIFICATION

Safety Certification

Our products have obtained the safety certificate issued by professional institutions recognized by the international community. Our products are suitable for most countries and regions in the world. We have our sales services all over the world. You are welcome to purchase and use them.
