work environment

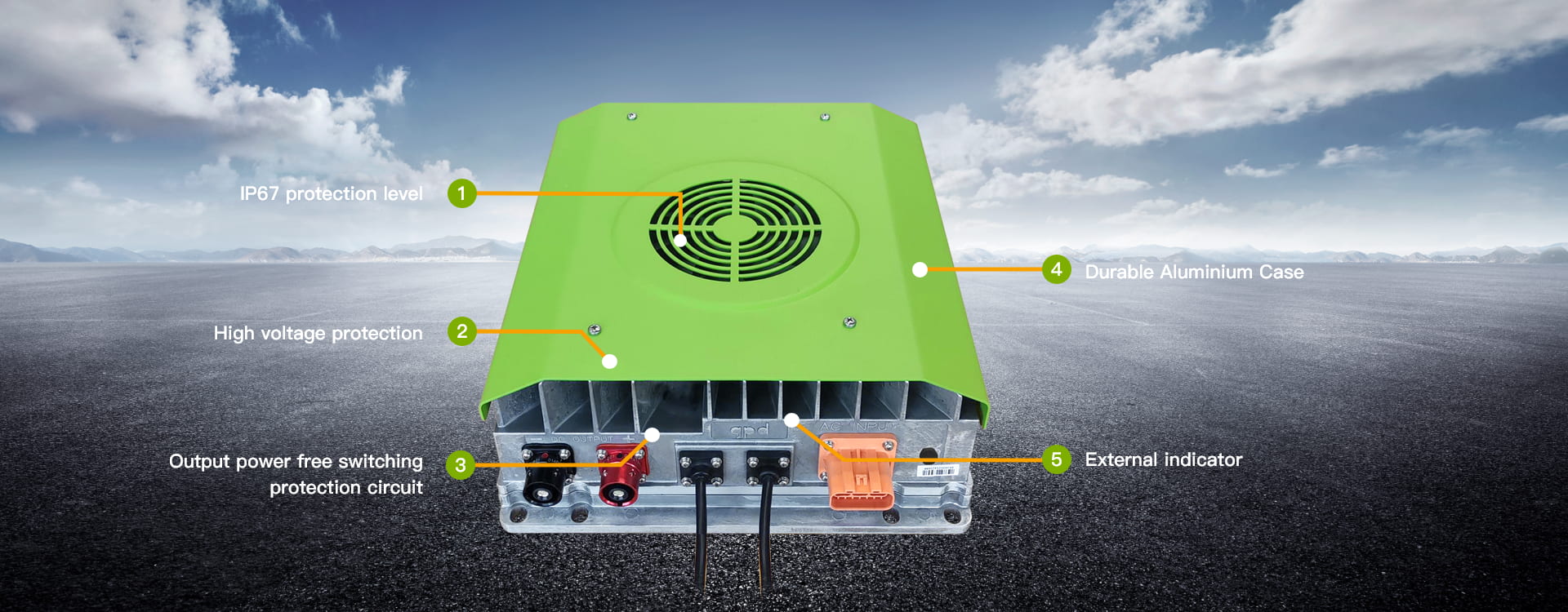

High voltage surge protection

IP67 / 66 durable design

Battery equalization charging

Reserve CANbus function

Charging record tracking

High power charging

APPLICABLE EQUIPMENT

Applicable Equipment

EQUIPMENT PARAMETERS

Equipment Parameters

Output Power 4800W
Working Voltage 200~400Vac/100~240Vac
Rated Voltage 200~400Vac/100~240Vac
Rated Frequency 50~60Hz
Nominal Output Voltage 48Vdc
Max Output Voltage 68Vdc
Max Output Current 100A
Efficiency 93%MAX
Working Temperature -40℃~65℃
Weight 11.9kg
Vibration UL1236
Humidity 10~90%Rh
Dimension 373*289*137mm
IP Protection Level IP67
PDF document

RECORD

SAFETY CERTIFICATION

Safety Certification
